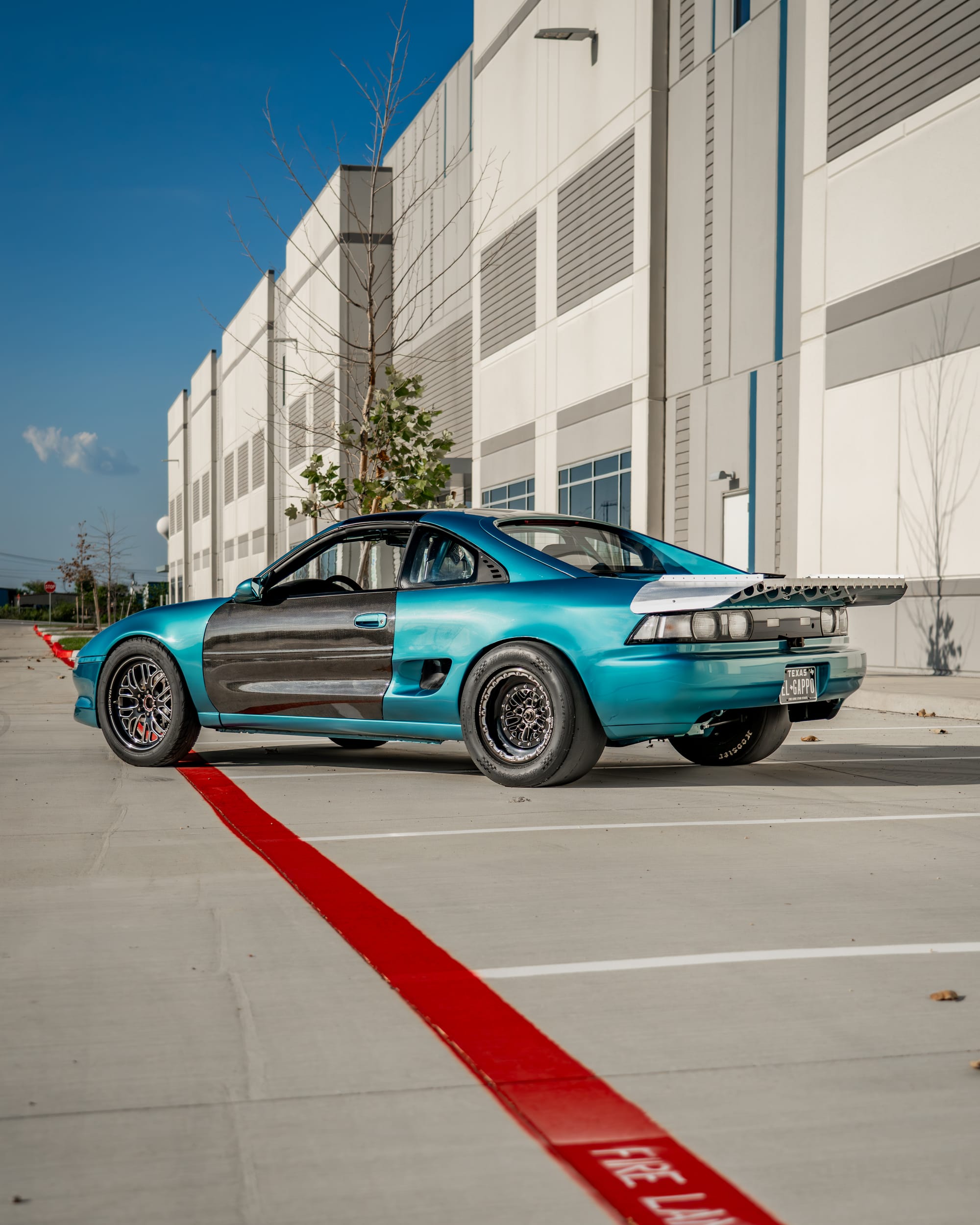

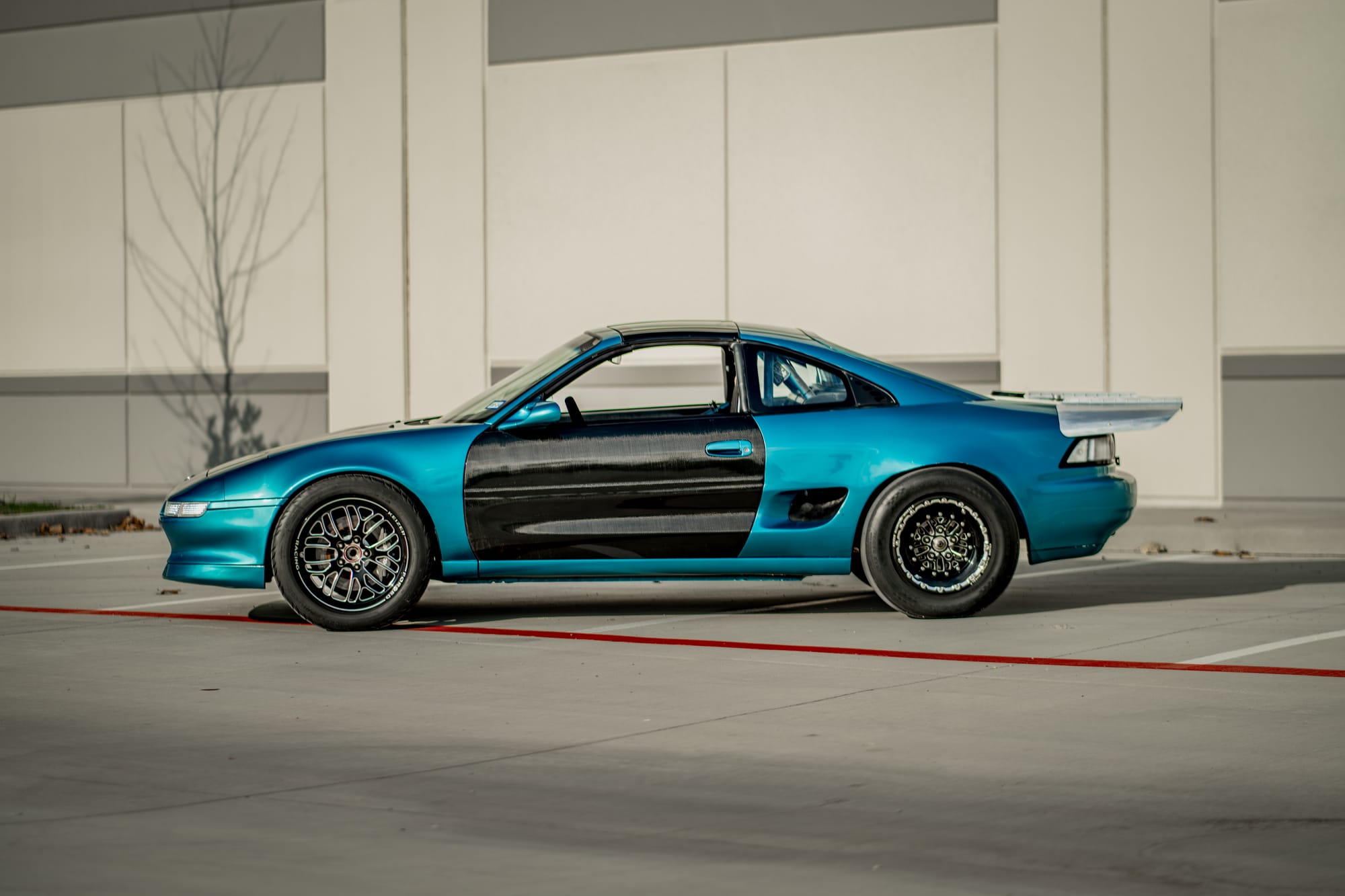

1200whp Fully Built K-Swapped 1993 Toyota MR2

Serious inquiries contact Alex at (540) 975-1429.

Essentials

VIN: JT2SW21N0P0020927
Title Status: Clean Title
Chassis Mileage: 98,765
Build Mileage: 100

Description

1200whp 1993 Toyota MR2 in Turquoise with 98,765 (Chassis) miles for sale! This is a relatively fresh build with less than 100 miles (only miles are from being tested/dialed in), professionally built by some of the most reputable shops in Texas including Smiley Autowerks, everything has been replaced/refurbished/restored/or modified. Delivering awe-inspiring performance with its well spec’d drivetrain, consisting of a fully built/RameyRacing sleeved K20Z1 with a Precision 8080 Sportsman turbo, a powerful combination that generated 1200whp after tuning was finalized by Tuned by Cam. Additional key components include a custom fuel cell, Aeromotive brushless pump, BF Gears 1-4 HD straight cut/Dog Gearset, Wavetrac 28 spline pro level LSD, DSS pro level axles, Competition triple disc clutch, Silver’s Neomax 2-Way Coilovers, all tubular arms, 10-point cage, and tons more. The car hasn’t been to the track, however it ran a 3.92 60-130, 3.07 100-150 on the street with this setup. Trades welcomed! Clean title!

Modifications

Engine:

RameyRacing Sleeved K20Z1
11:1 CP Pistons (.250 Wall 300M Pins)
Saenz 300M Rods w/ 625+ Rod Bolts
4 Piston Ported Type S Oil Pump
Drag Cartel Heavy Duty Timing Chain
Drag Cartel Chain Guides & Lower Guide
InlinePRO Timing Chain Tensioner
Delacruz Motorsports Timing Chain Cog
Unit 2 Baffled Oil Pan
InlinePRO Extreme Duty Head Studs
King Coated Bearings
Athena Head Gasket
4 Piston Diamond Claw
ATI Damper
Stock Port Z1 Head
Drag Cartel 3.2s
New OEM VTC Actuator
Supertech Stainless Intake/Inconel Exhaust Valves
Supertech Valve Guides, Seals & Locks
Ferrea 140Ib Dual Valve Spring
Ktuned Valve Cover
Hux Racing Solid Engine Mounts & Mid Plate
Custom Catch Can/Puke Tank w/ Vent Through Trunk w/ Dual -12AN Lines

Turbo System:

Precision 8080 Sportsman, 1.15 AR Stainless V-Band Housing
Custom Turbo Manifold, Up Pipe, Recirc. Wastegate Dump & Charge Pipe by Walker Pro Motorsport
Straightline Intercooler w/ Fan
TiAL 60mm Wastegate
TiAL 50mm Blow Off Valve

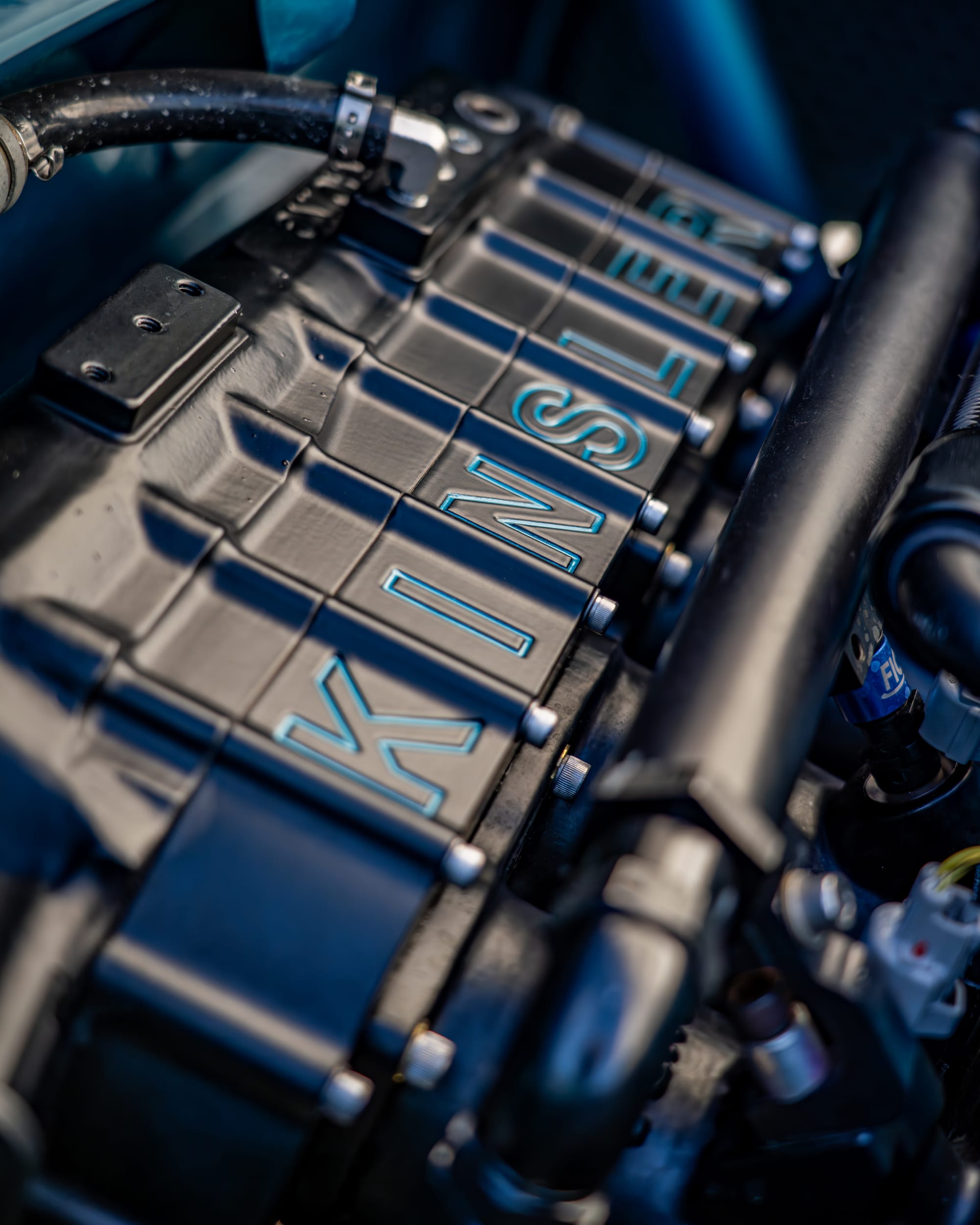

Kinsler 8 Injector Intake Manifold

Fuel System:

Custom Fuel Cell in Front by Walker Pro Motorsport
Aeromotive 10.0 Gallon Brushless Pump
Aeromotive Extreme Flow Regulator
Aeromotive Extreme Flow Pre & Post Filters
8 Southbay 2000cc
16AN From Tank to Pump, -12AN Split to Dual Rails & -12AN Return to Fuel Cell, All Vibrant PTFE Hose

Cooling:

TrackTuff Electric Water Pump Conversion Kit w/ Meziere Electric Water Pump
Aluminum Radiator & Slim Fans

Electronics:

AEM Infinity 708
Milspec Engine Harness w/ Firewall Disconnect, All Loomed in Raychem
EGT Module, Individual EGT’s & Additional Thermocouple for Oil Temperature
Oil Heater Installed in Oil Pan
Map, Oil, Fuel, Coolant Pressure, Crankcase Pressure, Back Pressure, Pre & Post Intercooler Temps & Pressures
GP1 Strain Gauge
82mm Bosch DBW Throttle
AEM 6 Channel CAN Module
AEM CD7
OEM S2000 Alternator w/ Larger Pulley
Big XS Power Battery in Factory Location

Drivetrain:

BF Gears 1-4 HD Straight Cut, Dog Gearset
Hux/Hybrid Racing Shifter Box w/ Custom 5-R Lockout
Billet Bellhousing
Wavetrac 28 Spline Pro Level LSD
Driveshaft Shop Pro Level Axles & Intermediate Bar
KDN Shift Selector
Competition Triple Disc Clutch
Magnus Launch Control Device

Suspension:

All Tubular Arms Front & Rear Control Arms, Toe Arms & Anti Squat Bar from Hux Racing
Silver’s Neomax 2-Way Coilovers w/ External Reservoirs & Custom Spring Rates
Trueleo Billet Front Knuckles

Wheels/Tires & Brakes:
