This vehicle has been sold, however more vehicles can be viewed here.
Essentials
- VIN: 1G6DV5EP5C0103654
- Title Status: Clean Title
- Chassis Mileage: 114,807
- Build Mileage: 14,807
Description

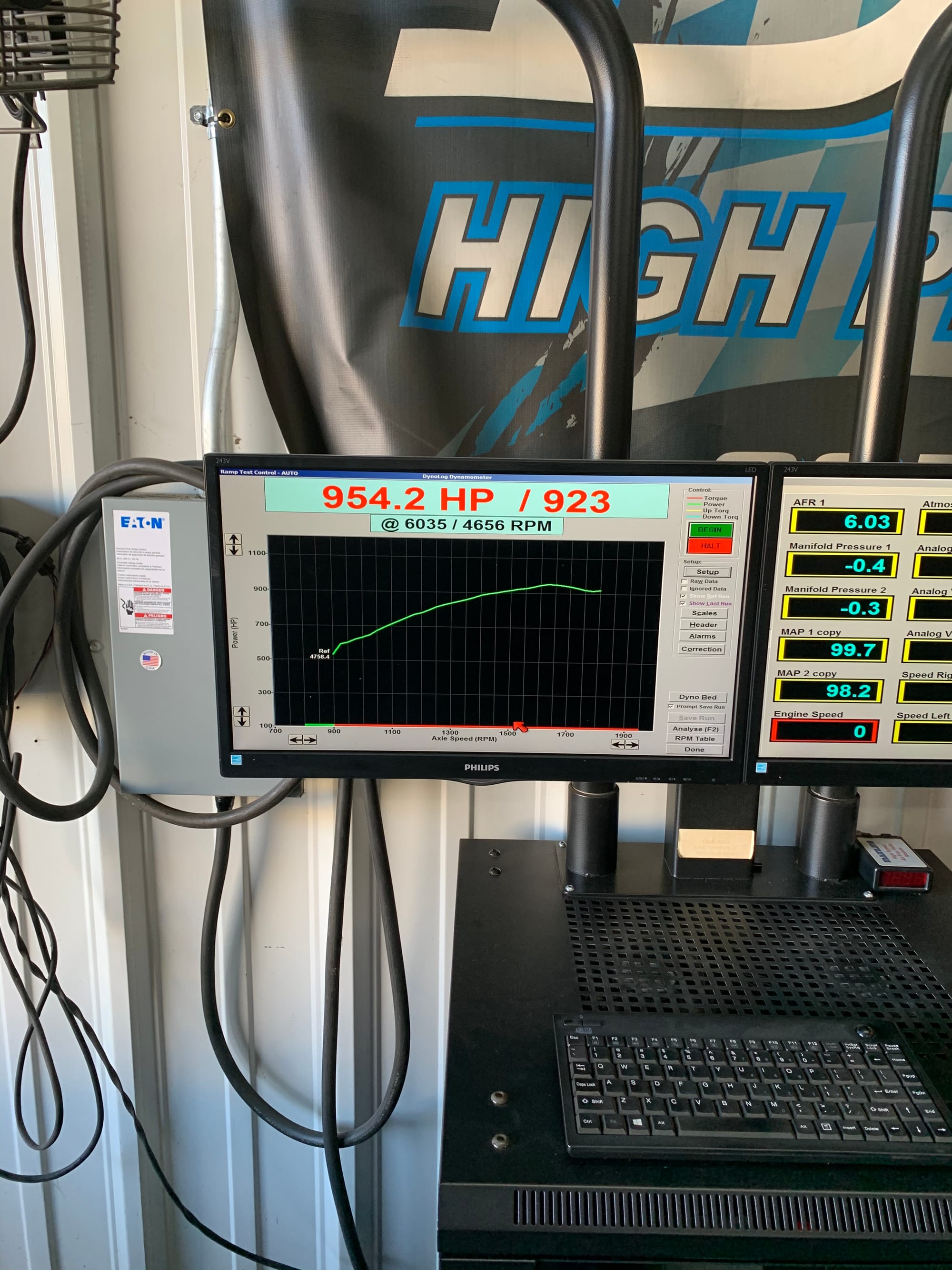

954whp 2012 Cadillac CTS-V Sedan in Black Raven with 114,807 miles for sale! This heavily modified V2 was assembled and tuned by DBR Performance, all performance work was completed at 100K miles with receipts for the work that was done. Powered by a Late Model Engines 416ci custom LSA engine that’s topped with a Magnuson MP2300 TVS Heartbeat supercharger system, and mated to a TK 6L90 Stage 4 Max 6-speed automatic transmission. Additional build highlights include a Fore Innovations L4 triple pump fuel system, ID1300X injectors, American Racing Headers 2”, Mild-to-Wild exhaust cutout valve kit, Forced Induction interchiller, E85 kit, Circle D converter, and more. Tuning was finalized by DBR Performance as well with an output of 954whp/923wtq on last recorded dyno run. The car has only seen street use only/daily driven, it hasn’t been tracked. Oil changes were performed every 3K miles with Amsoil Signature Series Synthetic, and a Delco Gold filter. There are currently 14,807 miles on the build! Clean title!
Factory Options
- Black Raven Exterior
- Ebony Interior
- Recaro Seats
- Navigation
- Bose Stereo
- 6-Speed Automatic Transmission
Modifications
Engine:
- Late Model Engines LSA 416” 9.7:1 Dyno Tested Long Block
- Balance & Blueprint
- GM LSA Aluminum Block
- Fully Deburr, Line Hone & Deck Block to Desired Height w/ BHJ Deck True Fixture, Bore Block on 4 Axis CNC, Diamond Hone Block w/ Torque Plates, Balance Crankshaft to 1/4 oz. in. Tolerance
- Callies Dragon Slayer 4340 Forged 4.0” Stroke Crankshaft w/ Indexed & Trued Journals
- Callies Ultra Billet 6.125” H-Beam Rods w/ ARP Ultra 7/16” Bolts
- Wiseco LS Shelf Wiseco Forged Pistons w/ Tool Steel Wrist Pins & Anti-Friction Coating on Skirts
- Clevite CB 663 H Rods, Dura Bond CH-23 Cam Bearings
- Brodix/LME Ported BR3 6 Bolt CNC Heads
- Competition Valve Job, Flow Testing, Chambers Milled To Desired CC, Hollow Stem 2.165”” Intake Valves, Stainless Exhaust Valves, LME Dual Valve Springs, Titanium Retainers, Machined Locators & Locks, Viton Valve Seals, Bronze Guides
- ARP Main Studs
- Cam Motion 8620 Billet Core Custom LSx
- Johnson High RPM Tie Bar Hyd. Roller Lifters w/ .700” Camshaft
- Roll Master Double Roller Timing Set w/ Torrington Bearing & Nitrified Gears
- Manley 3/8” x 7.400” x .080” Wall 1-Piece Chromoly Pushrods
- GM LS3 Intake Rocker Arms
- GM L92/LS3 Exhaust Rockers
- Comp Cams LS7 Intake & Exhaust Rocker Modification
- ARP Pro Series 12-Point Head Stud Kit
- Melling 10296 Coated High Volume/High Pressure Oil Pump, Ported
- GM LS2 Front Cover w/ Cam Sensor, Gasket, Seal & Bolts
- GM LS2 Valley Cover w/ Gasket & Bolts
- GM Rear Cover w/ Gasket, Seal & Bolts
- GM Engine Mounts
- MSD Wire Set
- Meziere True Billet Flexplate
Supercharger System:
- Magnuson MP2300 TVS Heartbeat Supercharger System
- S/A Inlet & Barbs
- Lingenfelter 10” Lower Pulley
- Magnuson Heartbeat TVS Pulley 2.65” 8-Rib Black
- Gates Belt
Fuel System:
- Injector Dynamics ID1300X Fuel Injectors
- Fore Innovations L4 Triple Pump Fuel System
- Fore Fuel Rails
- TI Auto F90000285 Primary Fuel Pump
- (2) TI Auto F90000285 Secondary Fuel Pumps
- FC3 Staged Controller w/ Wiring
- PTFE -8 Feed & Return
- Microglass SSD Filter Media
- 0-100psi Fuel Pressure Gauge
- Honeywell Pressure Switch for FC3
- E85 Fuel Conversion Kit
Exhaust:
- American Racing Headers 2”
- Mild-to-Wild Exhaust Cutout Valve Kit
- Denso O2 Sensors
Cooling:
- FI Chiller Race Kit - Stage 2 Upgrade
Drivetrain:
- TK 6L90 Stage 4 Max 6-Speed Automatic Transmission
- Circle D Converter
- GM Transmission Mounts
Suspension:
- New Front & Rear Struts @ 100K Miles
- New Front & Rear Springs @ 100K Miles
- Creative Steel Grease-Able Control Arm Bushings @ 100K Miles
Wheels/Tires & Brakes:
- 20” Lexani Bavaria Wheels
- 255/35/20 Nitto Invo Tires
- 285/30/20 Toyo Proxes R888R Tires
- New Brakes @ 100K Miles
Interior:
- Banks iDash 1.8 Super Gauge
Exterior:
- Ceramic Coated
- Ground Effects Kit
- Unique Hood Wrap
