1090whp 2020 Ford Mustang Shelby GT500

Price / Location

$120,000 - Franklin Lakes, NJ

Posted

Sep 13, 2025

Updated

Apr 1, 2026

This is a Legacy Listing. Unlike our Verified Offers listings, this listing does not include Buyer Commitment Deposits or seller anonymity. The seller's contact information can be found within the listing details below, reach out directly to inquire.

Serious inquiries contact John at (201) 560-8527.

Essentials

VIN: 1FA6P8SJ6L5502731
Title Status: Clean Title
Chassis Mileage: 19,300
Build Mileage: 11,000

Description

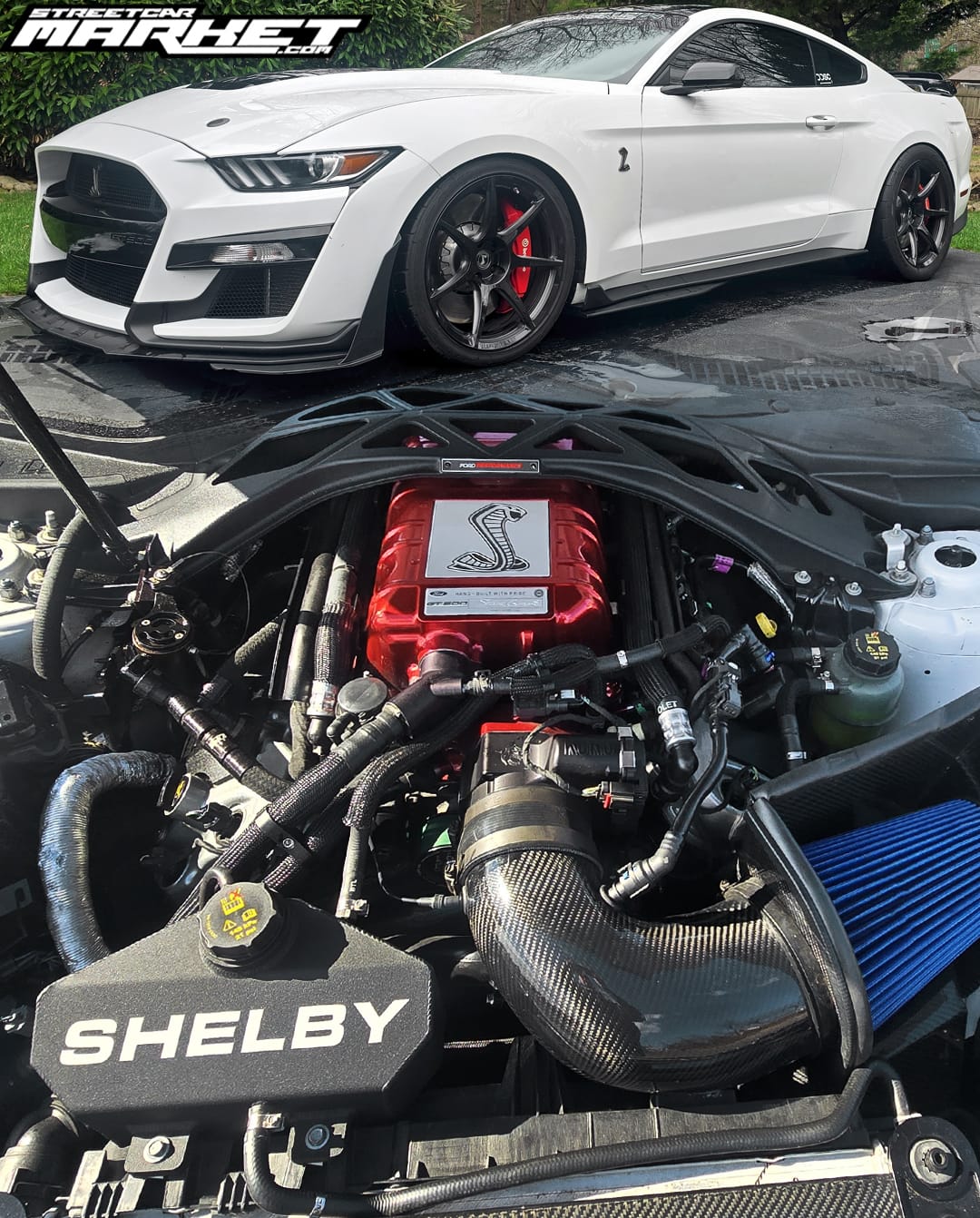

1090whp 2020 Ford Mustang Shelby GT500 in Oxford White with 19,300 (Chassis) miles for sale! This GT500 was built by Evolution Performance, armed with their Vx1000S package (Serial # 001) with 4-digit power on tap. Beneath the hood lies an MPR built/sleeved 5.2L engine that’s topped with a Kong CNC Vx ported supercharger, and linked to a Tremec TR-9070 7-speed dual-clutch transmission. The engine build consists of numerous first-rate components from top to bottom, including a Darton Gen 3 flanged sleeve set, Manley rods, forged 5.2L cross plane crank, custom CP pistons, Clevite main/rod bearings, CNC machined heads, ARP hardware, and tons more. Following the Kong ported blower, the supercharger system also utilizes a 10-rib pulley system with a 3.00” Griptec pulley, LMT billet lid, ATI 20% OD balancer, VMP 81mm race intercooler, Kong 108mm throttle body, and SPE carbon air intake. Fuel upgrades include SPE’s billet fuel rail kit, followed by a set of Injector Dynamics ID1300-XDS fuel injectors. Additional key components include a pair of Kooks 2” long tube headers, Borla ATAK cat-back with carbon tips, KellTrac Posi-Loc IRS subframe system, adjustable front Mangeride struts/strut mounts, 20” Signature SV104 brushed triple black wheels wrapped in Nittos, and more. Tuning was completed by Lund Racing with an output of 1090whp/805wtq on the dyno. Invoices are available! Clean title!

Modifications

Engine:

MPR Built 5.2L Engine
Darton Gen 3 Flanged Sleeve Set
Forged 5.2L Cross Plane Crank
Manley Billet 300M I-Beam Rods w/ ARP2000 Bolts
Custom CP Pistons w/ L2L Skirt Coating
.250 Wall H-13 Tool Steel Wrist Pins, Chamfered For Round Wire Locks
Custom AP Ring Set w/ C33 Coated Top Ring, Napier Second, Custom High Tensioner Oil Ring
Oil Squirter Block Off Set
ARP Main Stud Kit w/ Side Bolts
Clevite Coated Main & Rod Bearing Sets
ARP Head Stud Kit
Cometic MLS Head Gasket Set
CNC Machined Heads
Top Fuel Mini Hoops
Ferrea Stainless Intake Valve Set
Ferrea Super Alloy Exhaust Valve Set
Custom Vitron Valve Seal Set
Custom Valve Spring Set
Titanium Retainer Set
Bronze Intake Guide Set
Bronze Exhaust Guide Set
ARP Cam Tower Bolt Kit
Boundary Black Oil Pump Gears
Boundary Billet Oil Pump Backing Plate
HD Primary Timing Chain Set
HD Secondary Timing Chain Set
Billet Crank Sprocket
APEX Harmonic Balancer Stud
UPR Pro Series Oil Catch Can
NGK LTR7IX-11 Spark Plugs
Evolution Black Billet Coil Covers
Silver Powder Coated Valve Covers
Motorcraft Oil Filter
Amsoil 5W50 Engine Oil
