Essentials
Make
Ford
Model
F-150
Engine
Gen 3 5.0L Coyote
Transmission
10R80 10-Speed Automatic
Chassis Mileage
11,000
Build Mileage
2,000
Exterior Color
Iconic Silver
VIN
1FTMF1C5XPKE70032
Title Status
Clean
Seller Type
Private Party
Highlights

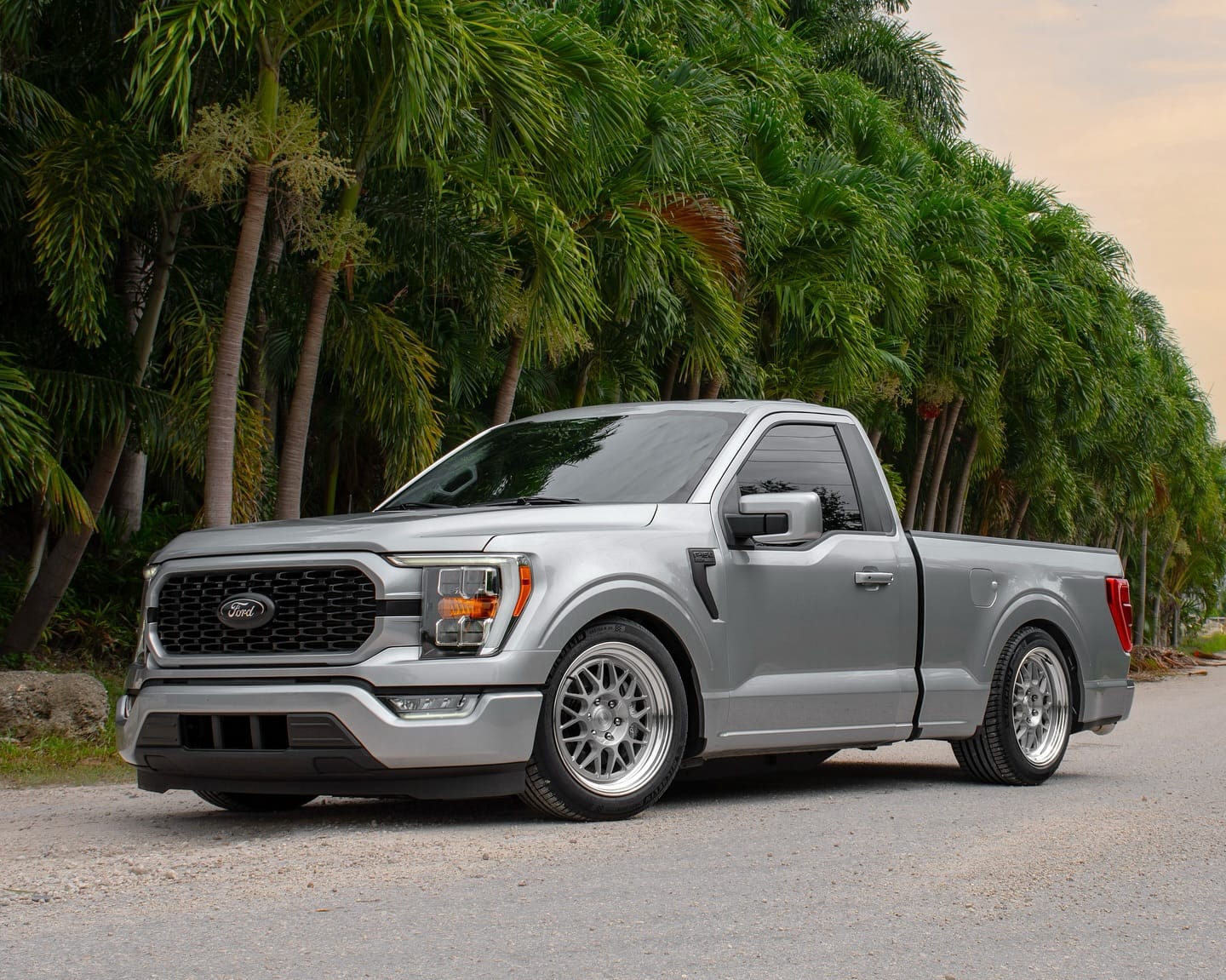

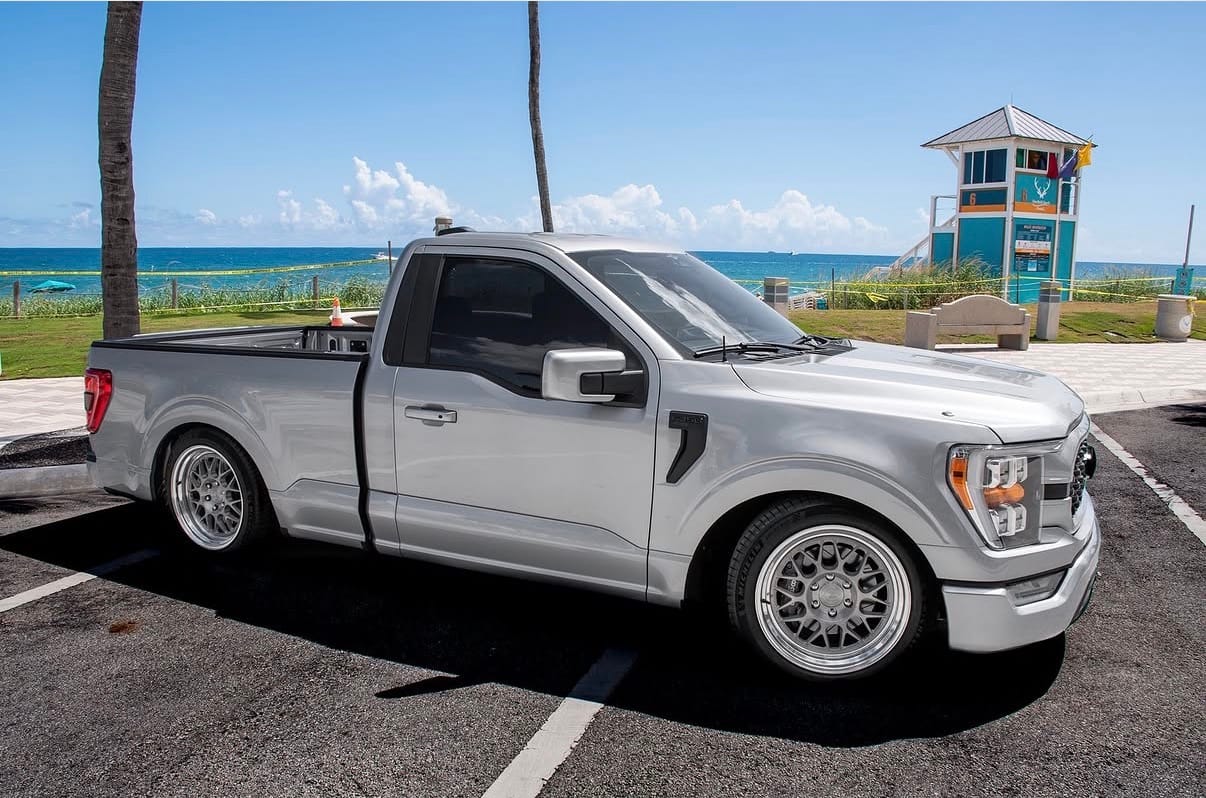

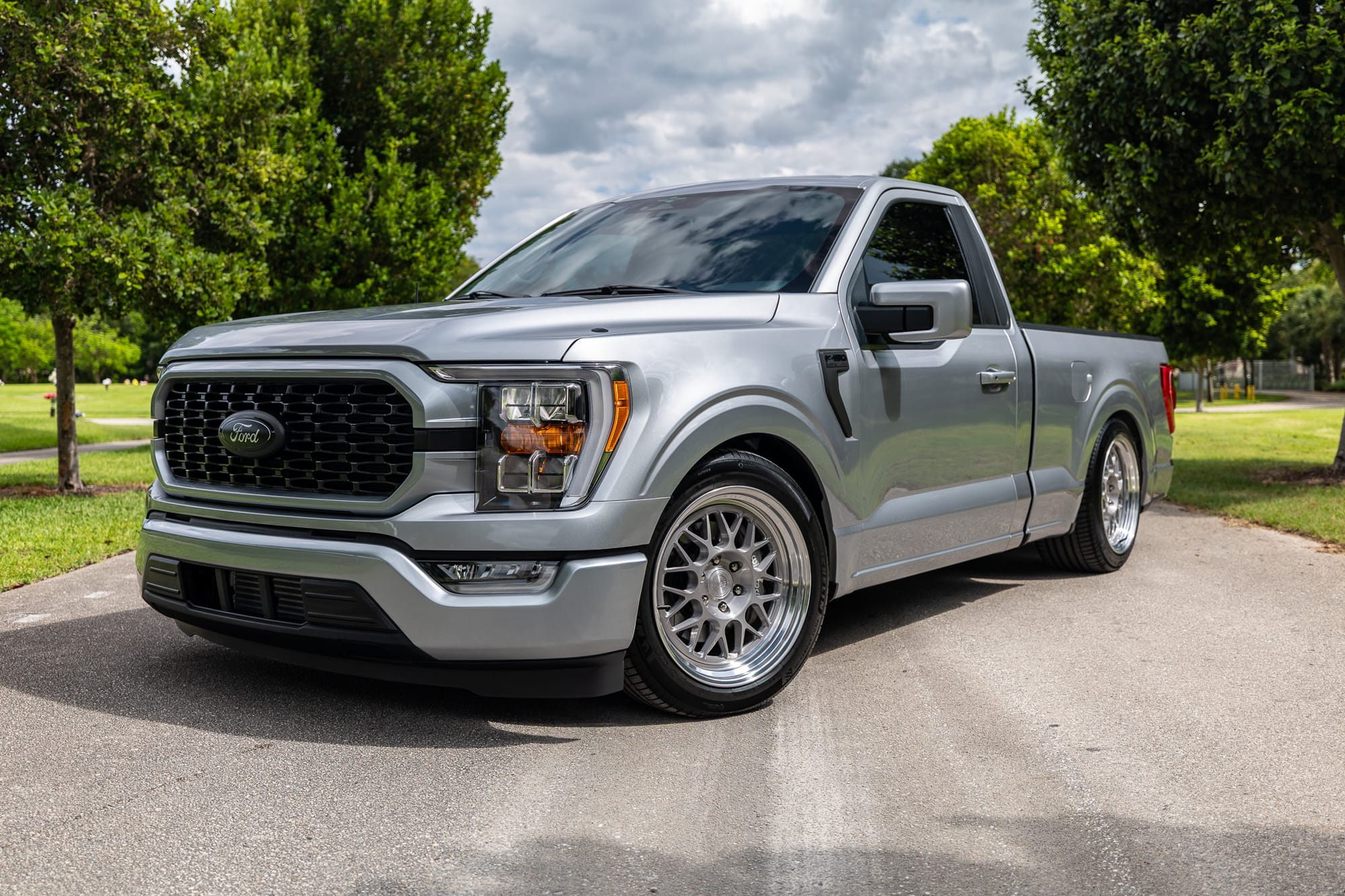

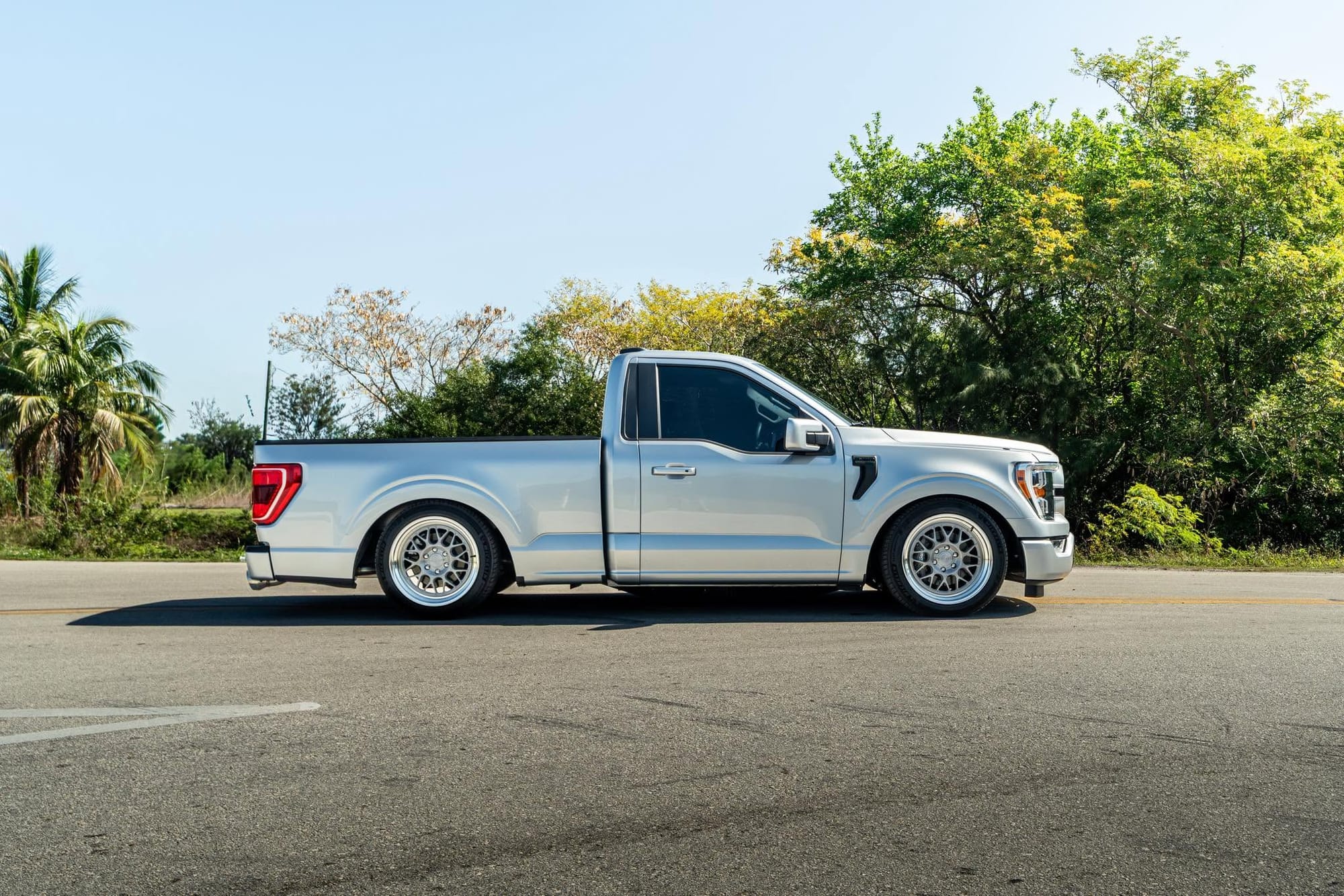

798whp 2023 Ford F-150 XL 2WD in Iconic Silver with 11,000 miles for sale!
- The owner purchased the truck with a vast majority of the modifications already installed by the previous owner. He added the Fore Innovations fuel rails and a new custom Shoemaker tune. At 10K miles the truck received a full bumper to bumper assessment (checked cylinder head pressure, brake lines, fuel lines, etc.), new spark plugs, and an oil change.

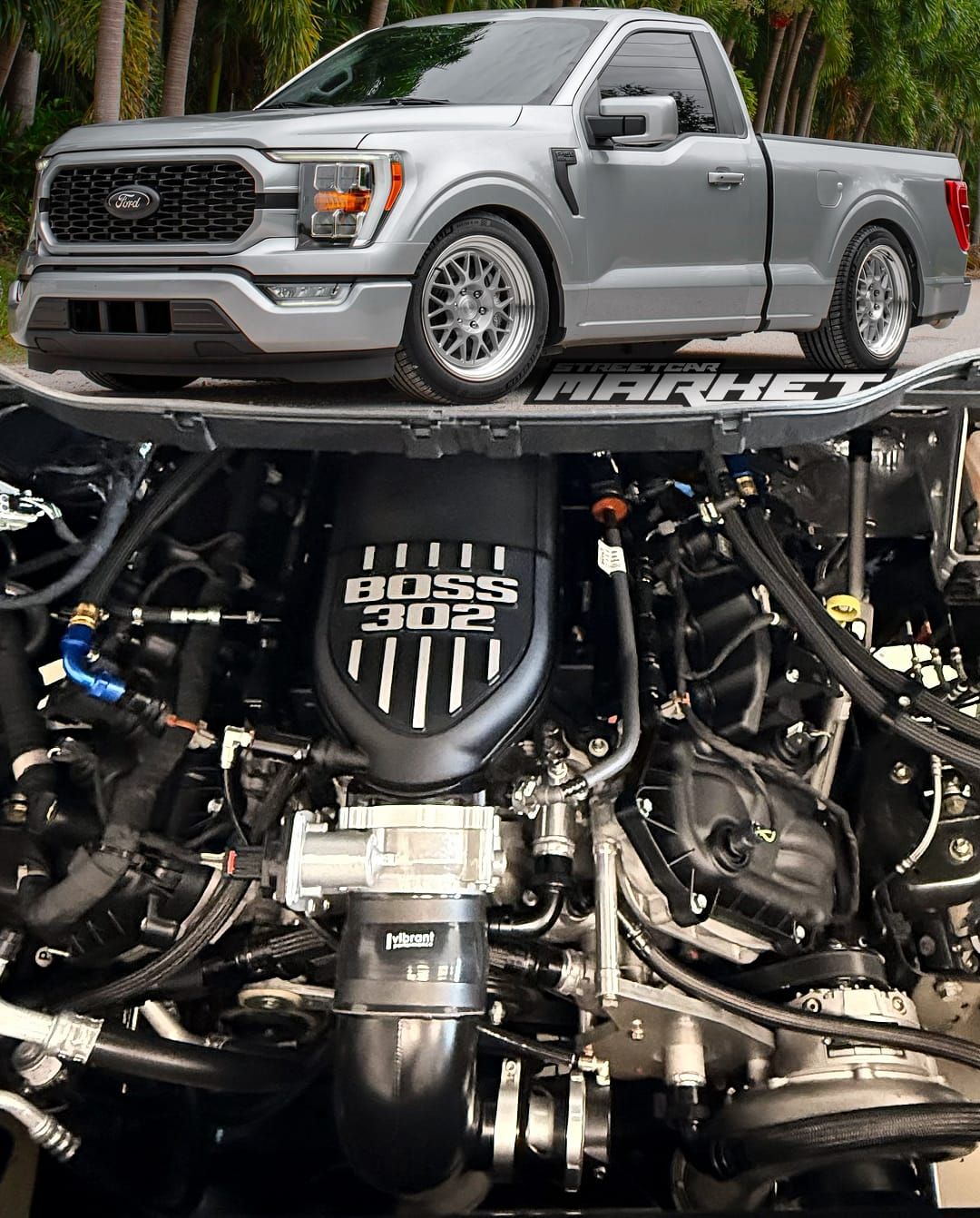

- Beneath the hood lies a gen 3 5.0L Coyote that’s coupled with a Paxton 2200SL supercharger, powered generated from this combination is transferred to the rear wheels through a 10R80 10-speed automatic transmission. Further equipped with custom fabricated exhaust system by @2jtruck, drivetrain upgrades, fuel system, BC Forged wheels, custom suspension setup with custom coilover mounts, custom 4-link with Ridetech coilovers, custom chromoly x-brace in the bed, etc.
- Tuning was finalized by Rob Shoemaker with an output of 746whp on 93 octane, and 798whp on E85 (dyno sheets available). There are currently 2,000 miles on the setup with zero issues, this is a show quality build that looks and sounds phenomenal.
Modifications
Engine:

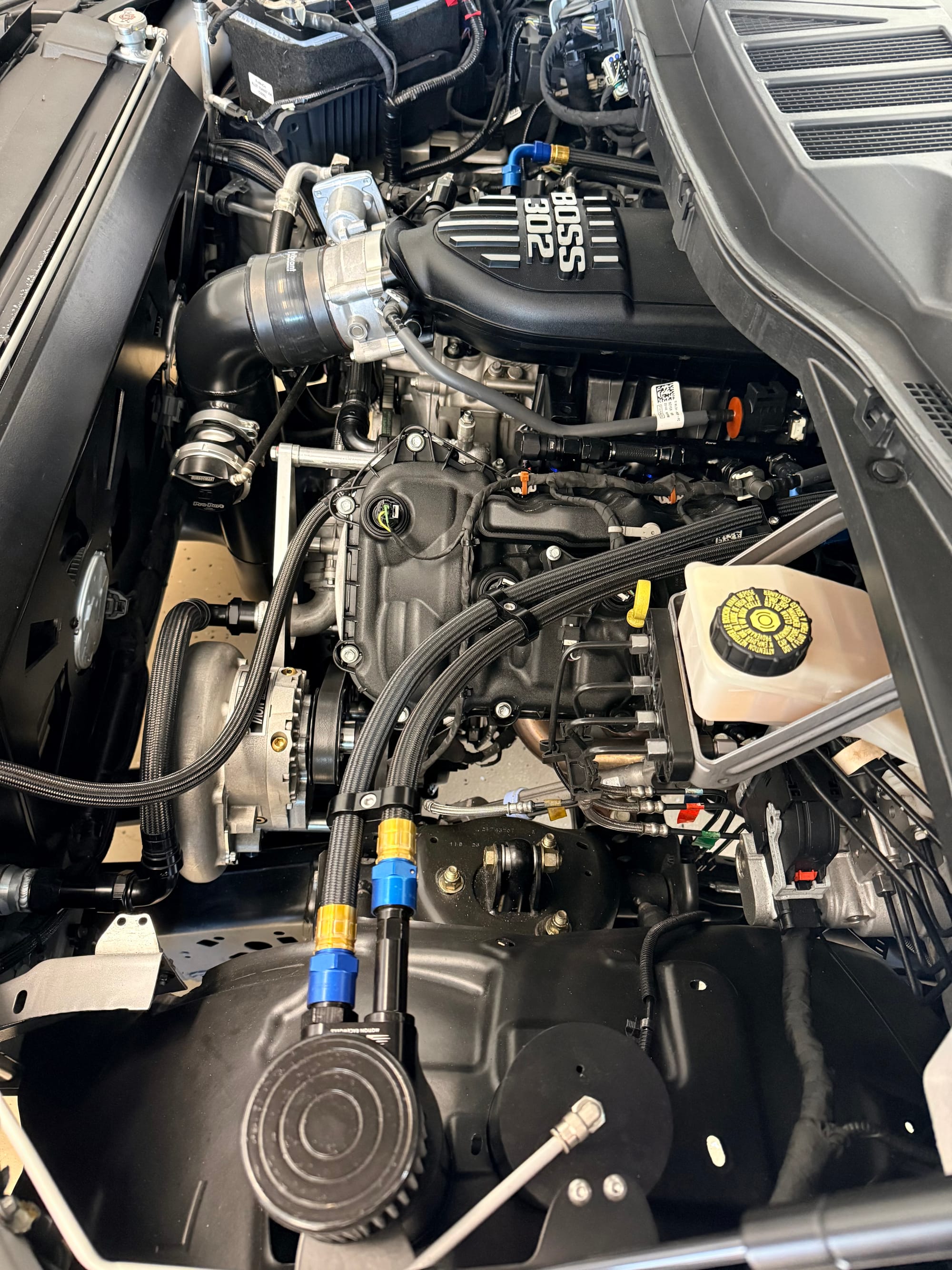

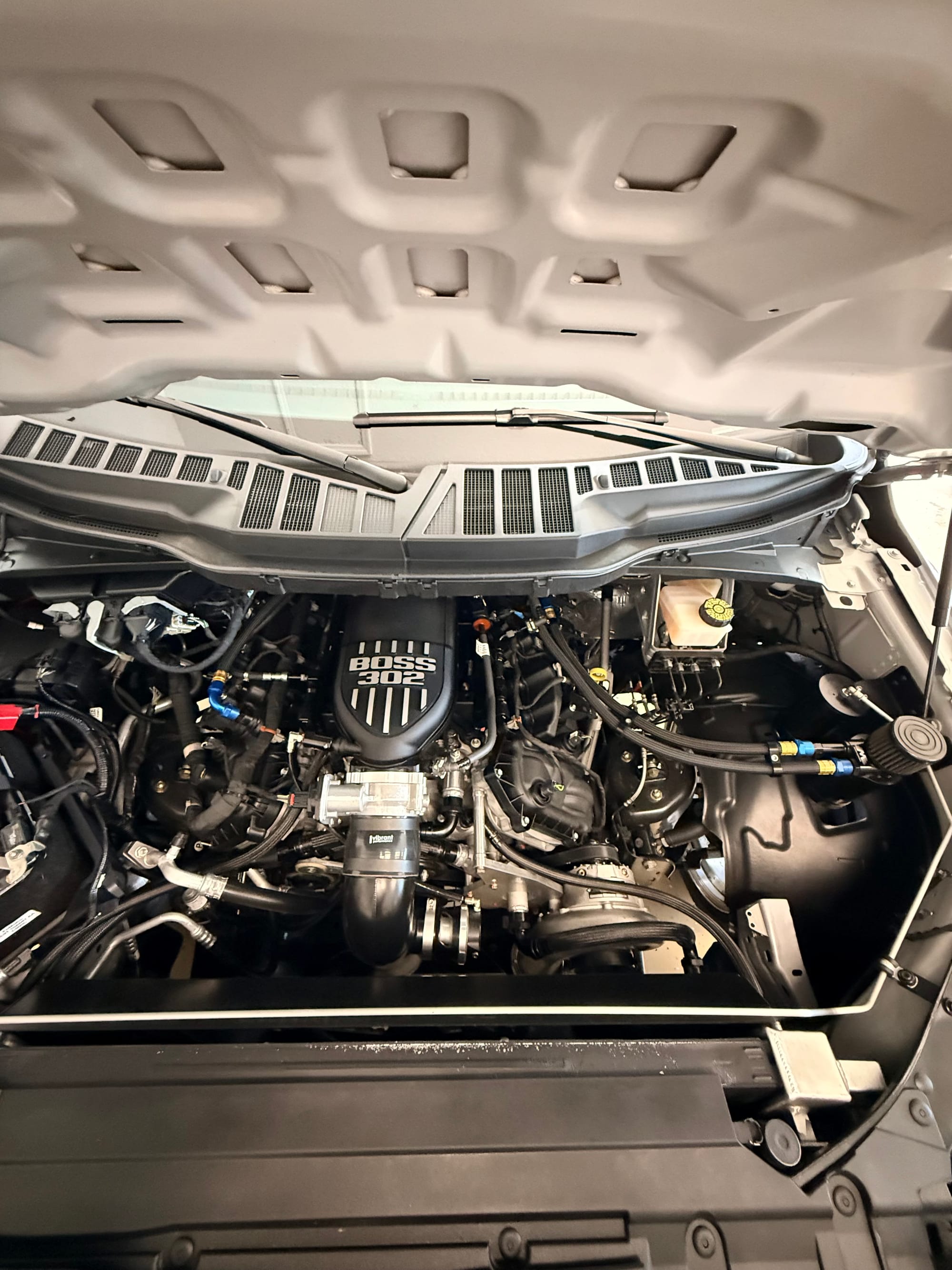

- BOSS 302 Intake Manifold
- Motion Raceworks Billet Catch Can
Supercharger System:

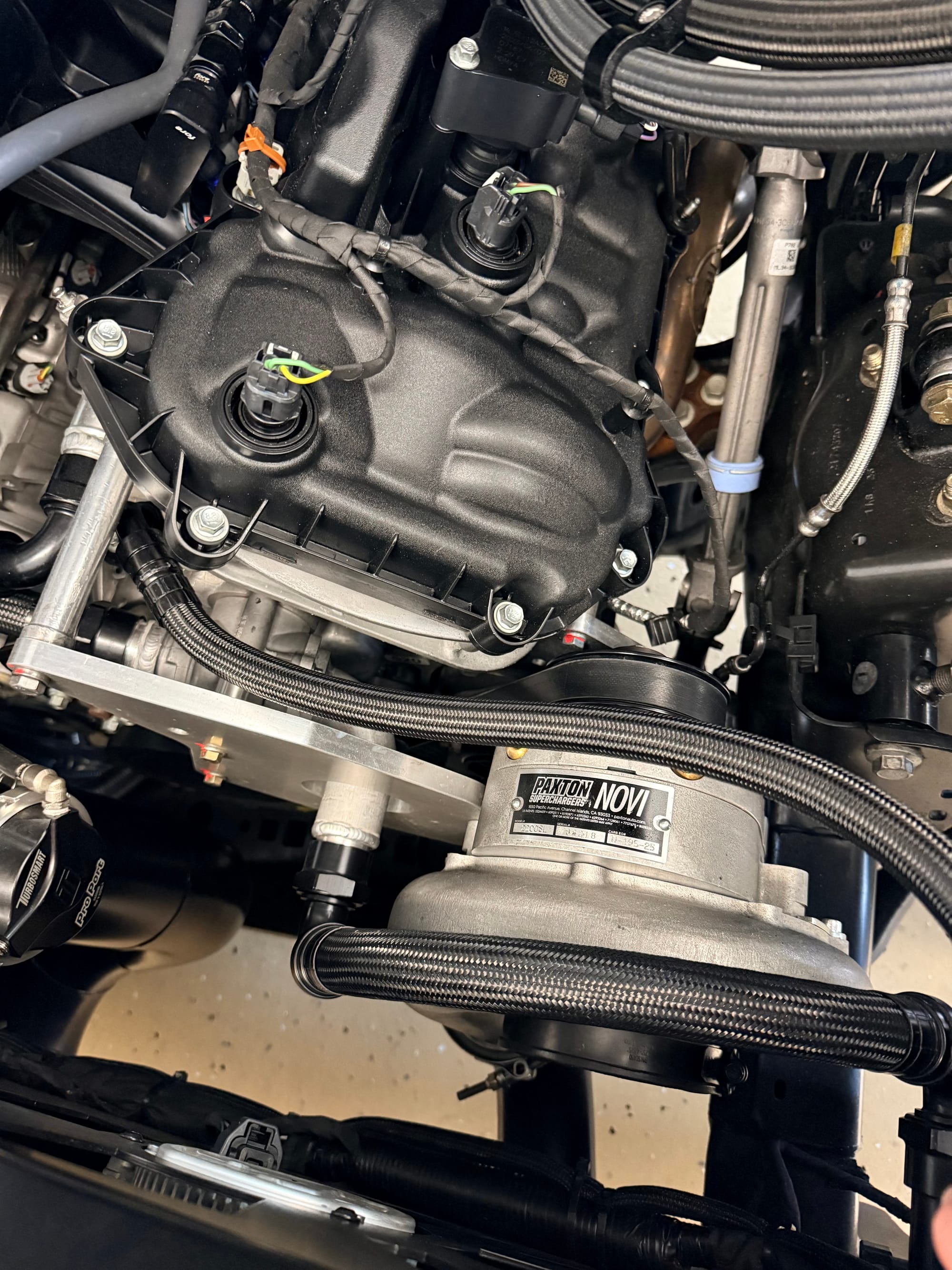

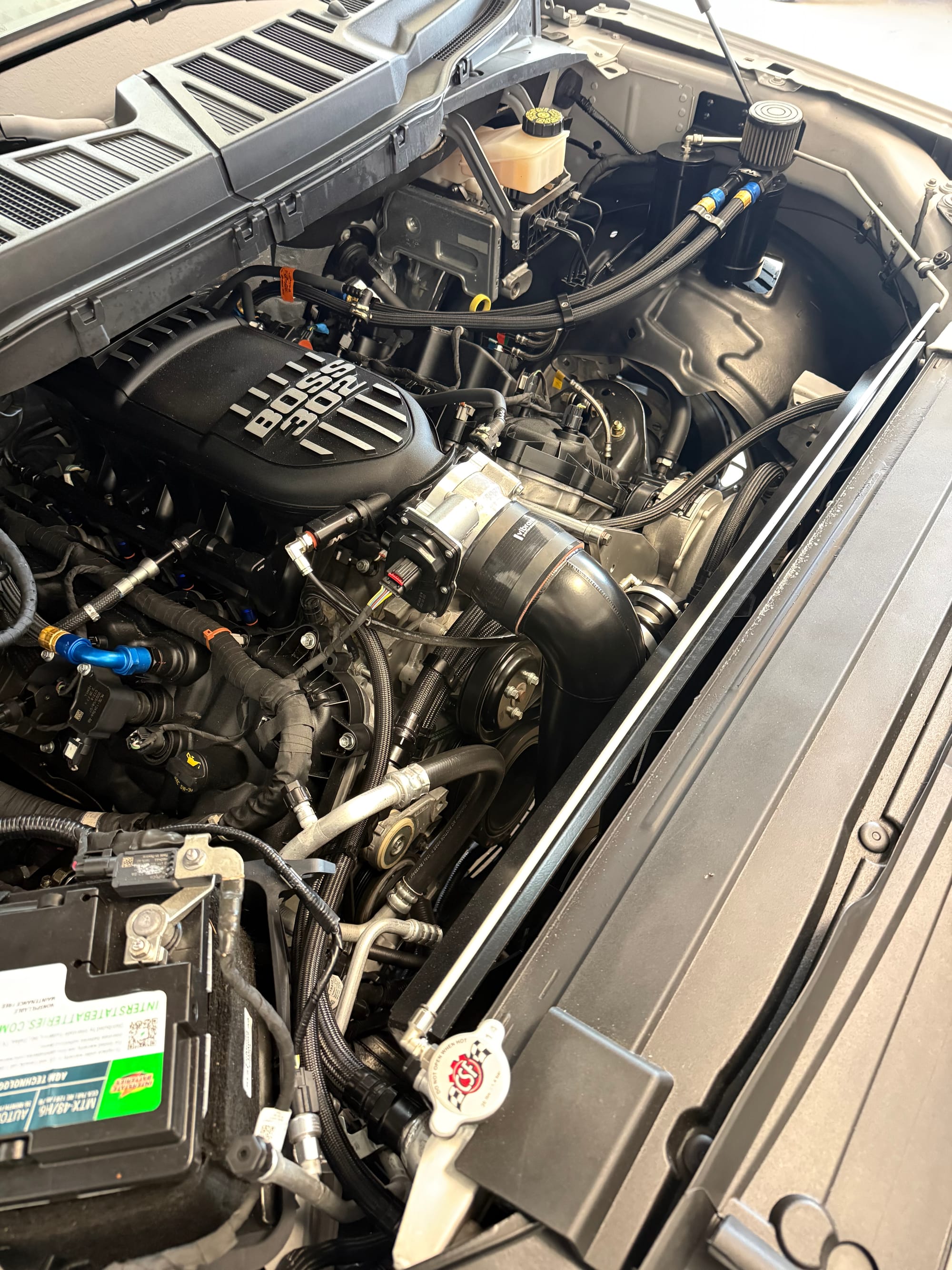

- Paxton 2200SL Supercharger
- GripTec 3.6” Pulley
- Custom Charge Pipes (Powder Coated)}
- Turbosmart Supercharger Blow Off Valve
- Custom 1000hp Intercooler
Fuel System:

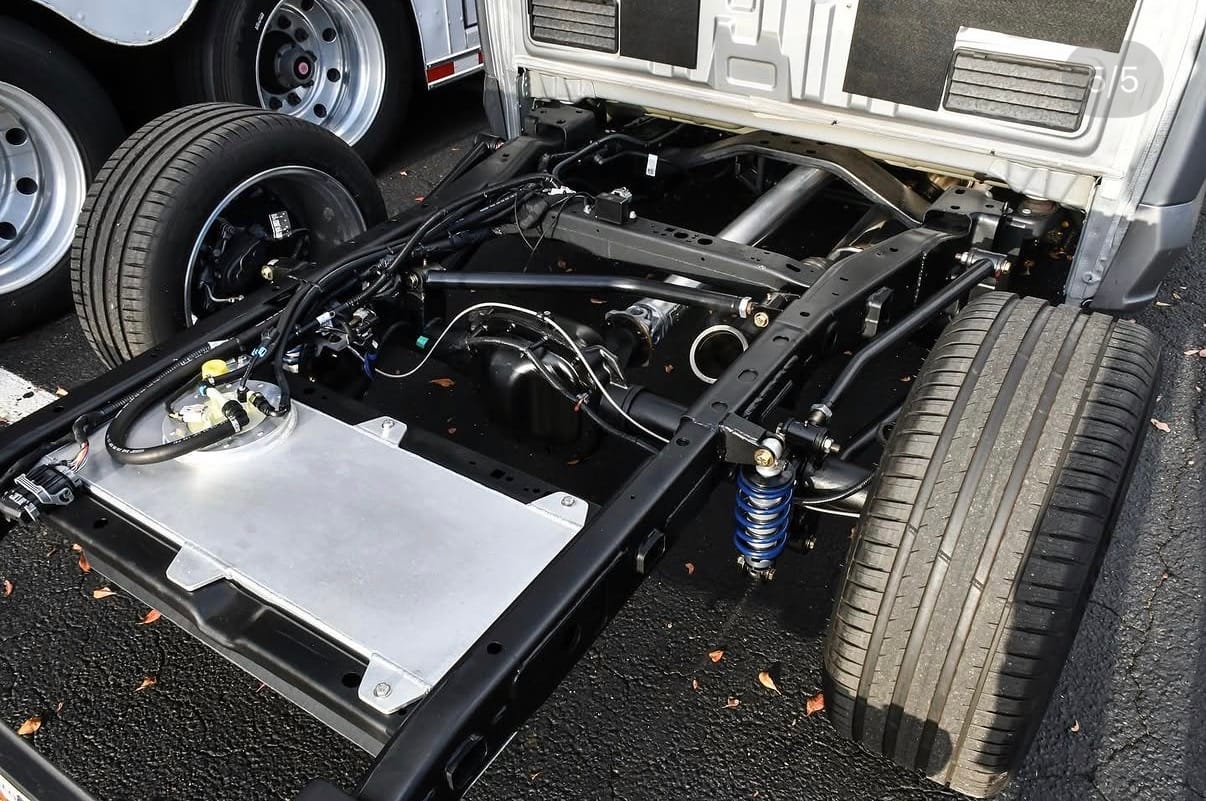

- Custom 16 Gallon Fuel Cell (Behind Rear Axle)
- JD Twin Pump Kit
- Radium Inline Fuel Filter
- Radium Fittings
- Radium Fuel Fill Kit Mounted to Bed Cage
- Fuel Injector Clinic 1000cc Fuel Injectors
- Fore Innovations Fuel Rails
Exhaust:
- Stainless Works Long Tube Headers

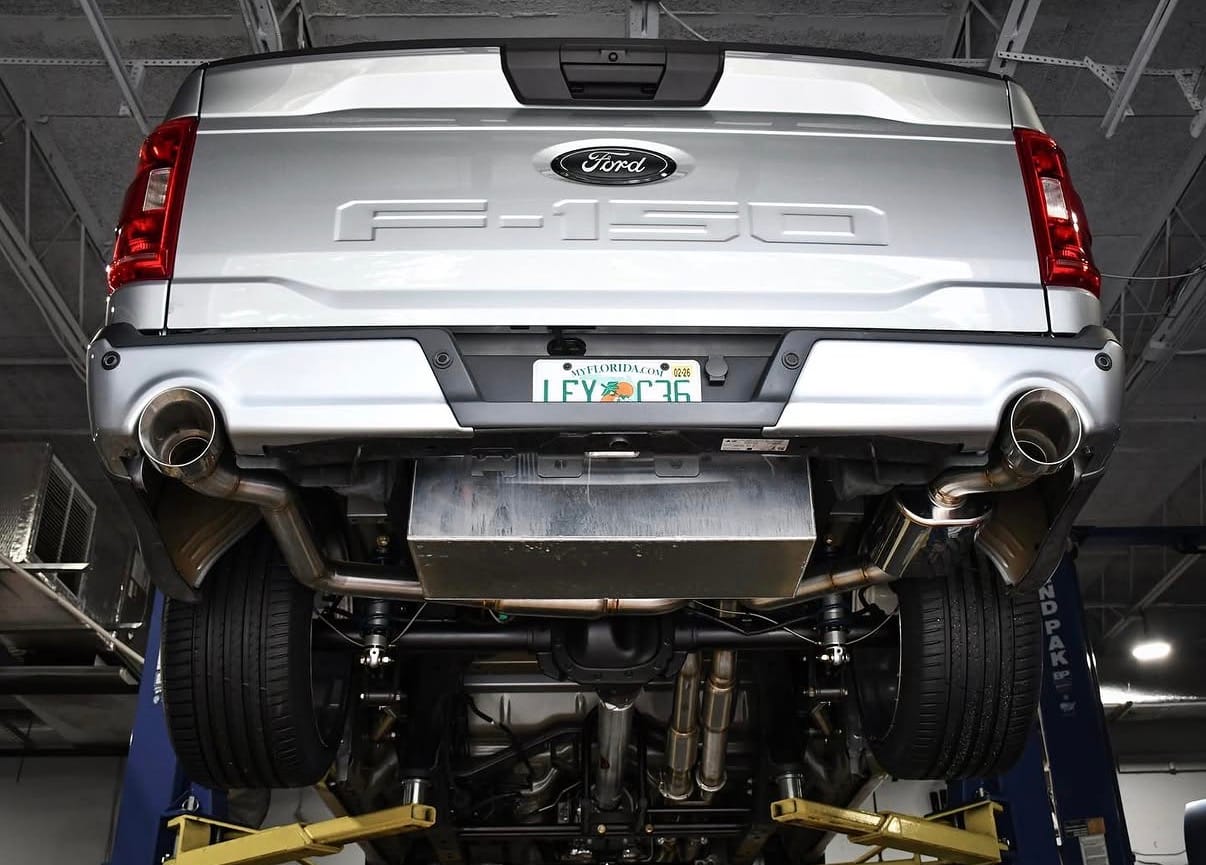

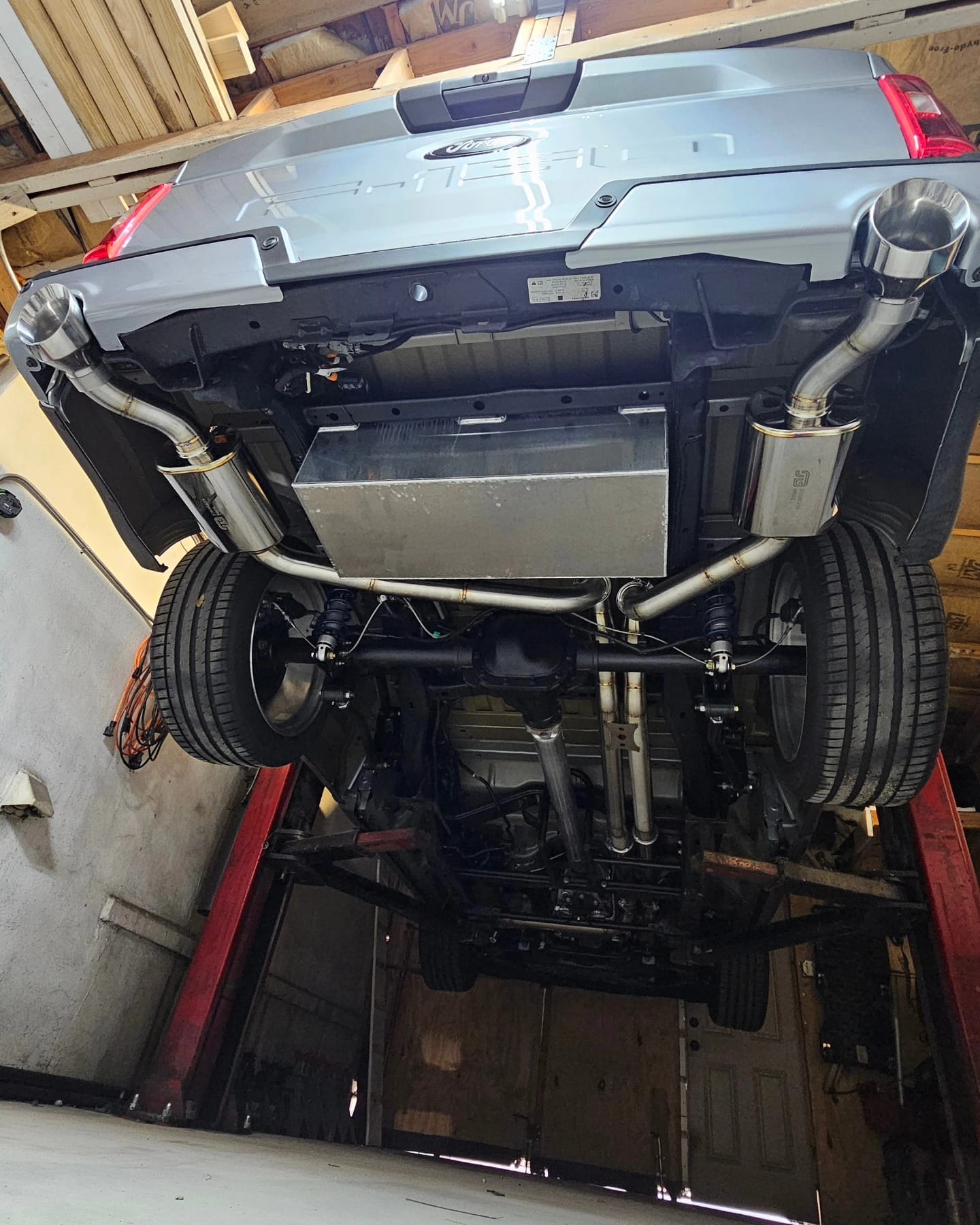

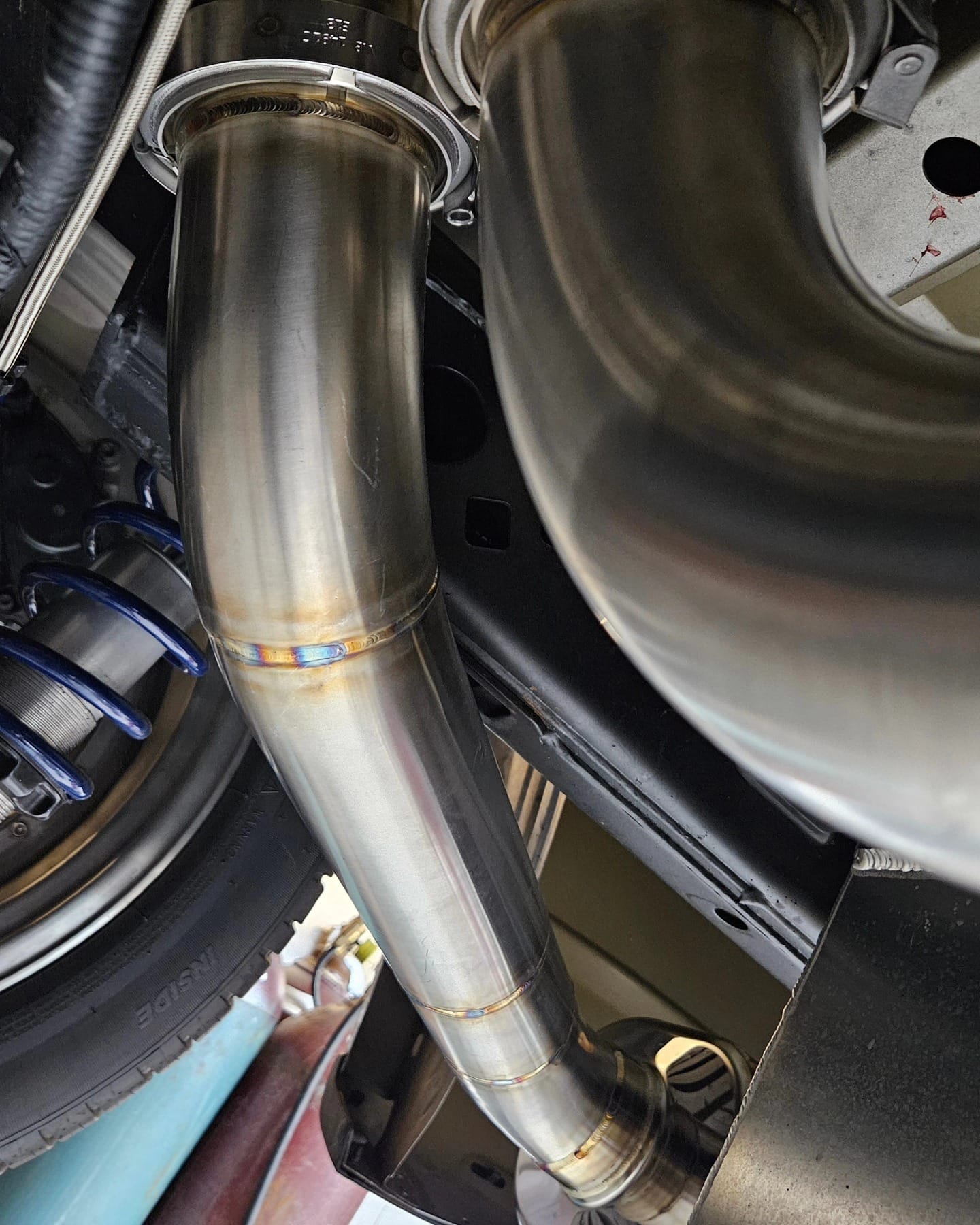

- Custom Fabricated True Dual Exhaust w/ V-Bands & X-Pipe
- Stainless Bros Mufflers & Resonators
- Polished Tips
Cooling:
- Custom -16AN Cooling System, All Fittings Have Been Welded
- Brown & Miller -16 Crimped Coolant Hoses
- Custom CSF Radiator w/ Built In Fill & Hardline Overfill Tube
- Heater Core Delete (No Factory Rubber Hoses)
- Motion Raceworks Overflow
- Custom CAD Designed Brackets
- Custom CAD Designed Radiator Shroud
Electronics:
- Driver-side Mini Wire Tuck
Drivetrain:
- Gulfcoast 4” Aluminum Driveshaft
- Ford 3.55 Gears
- Yukon Limited Slip Differential
- VAS Transmission Support Bar
- VAS Driveshaft Loop
Suspension & Chassis:

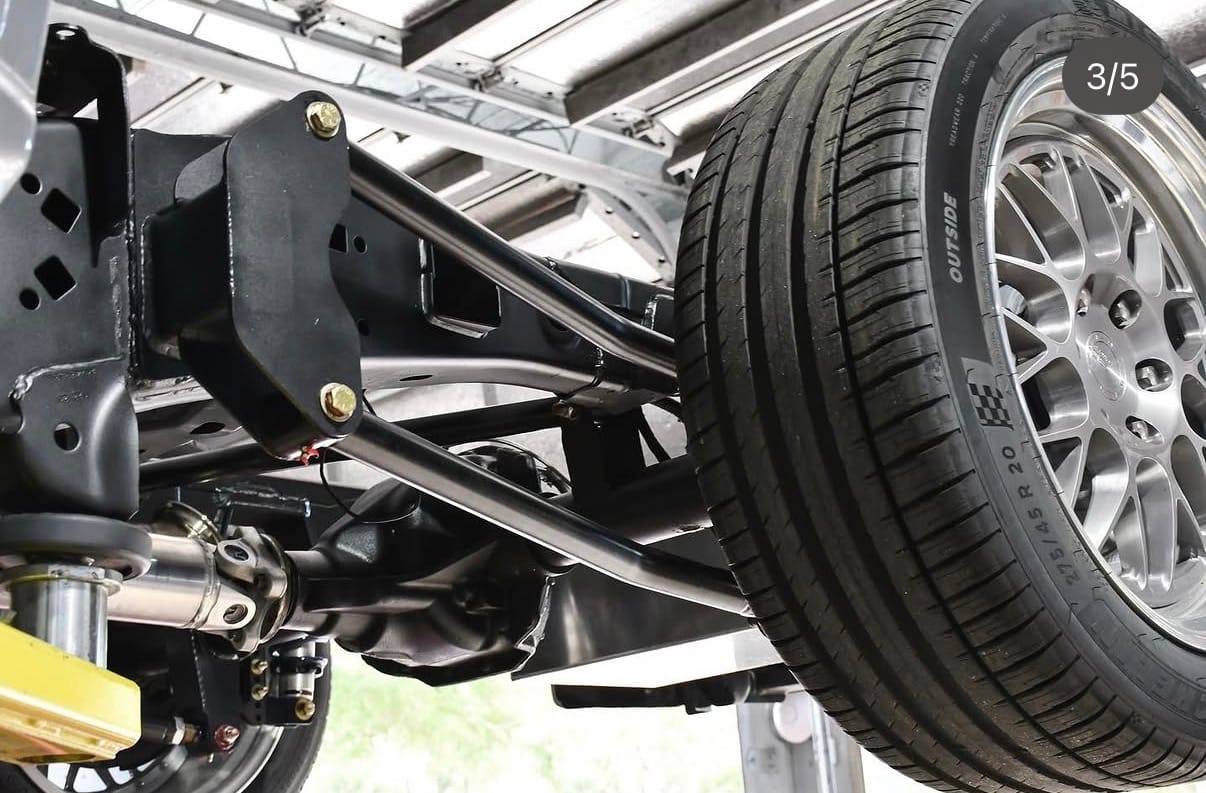

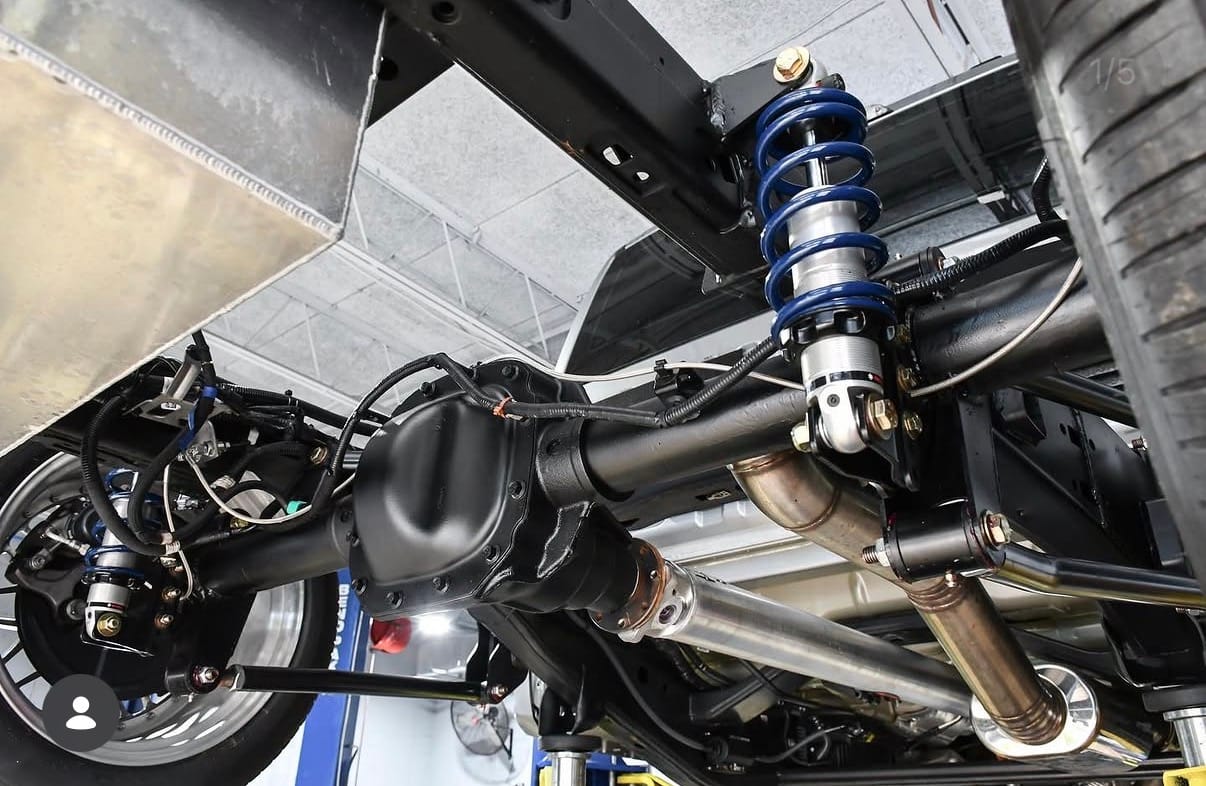

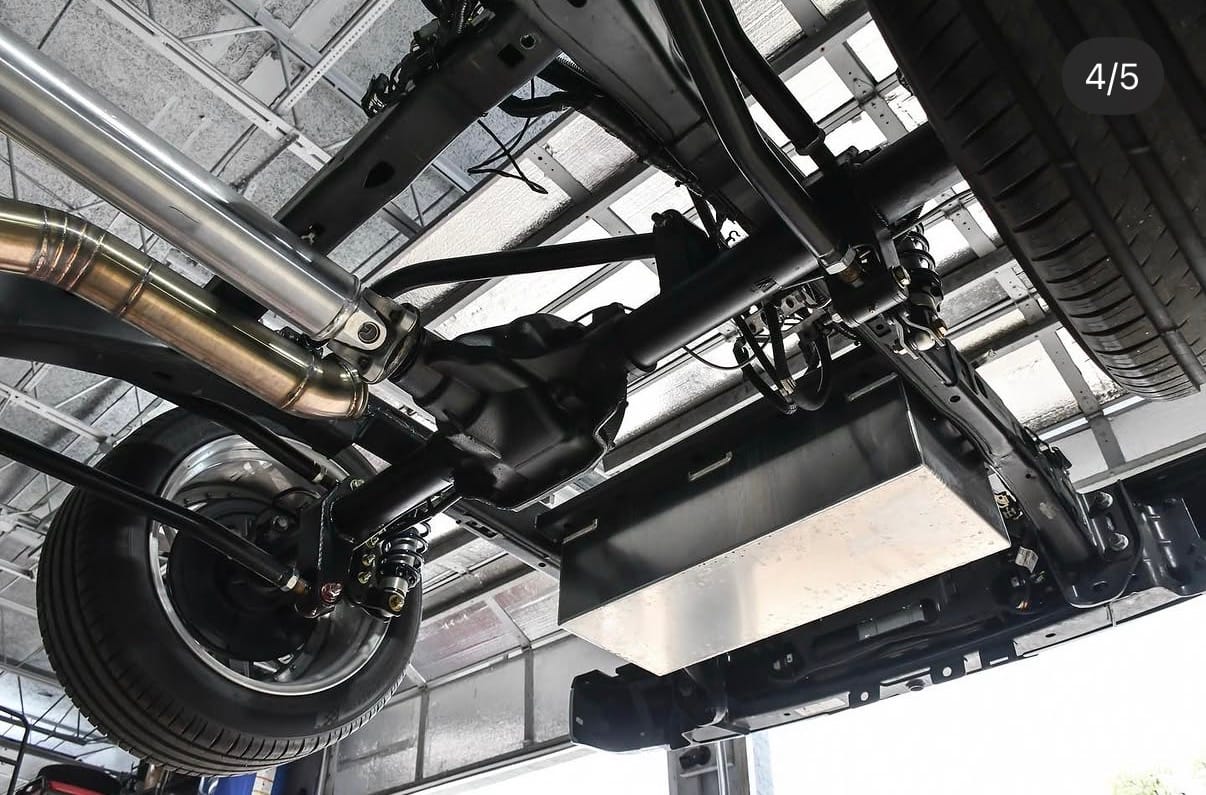

- Custom Fabricated 4-Link Rear End
- Custom Coilover Mounts
- Ridetech Coilovers
- VAS Adjustable Upper Control Arms

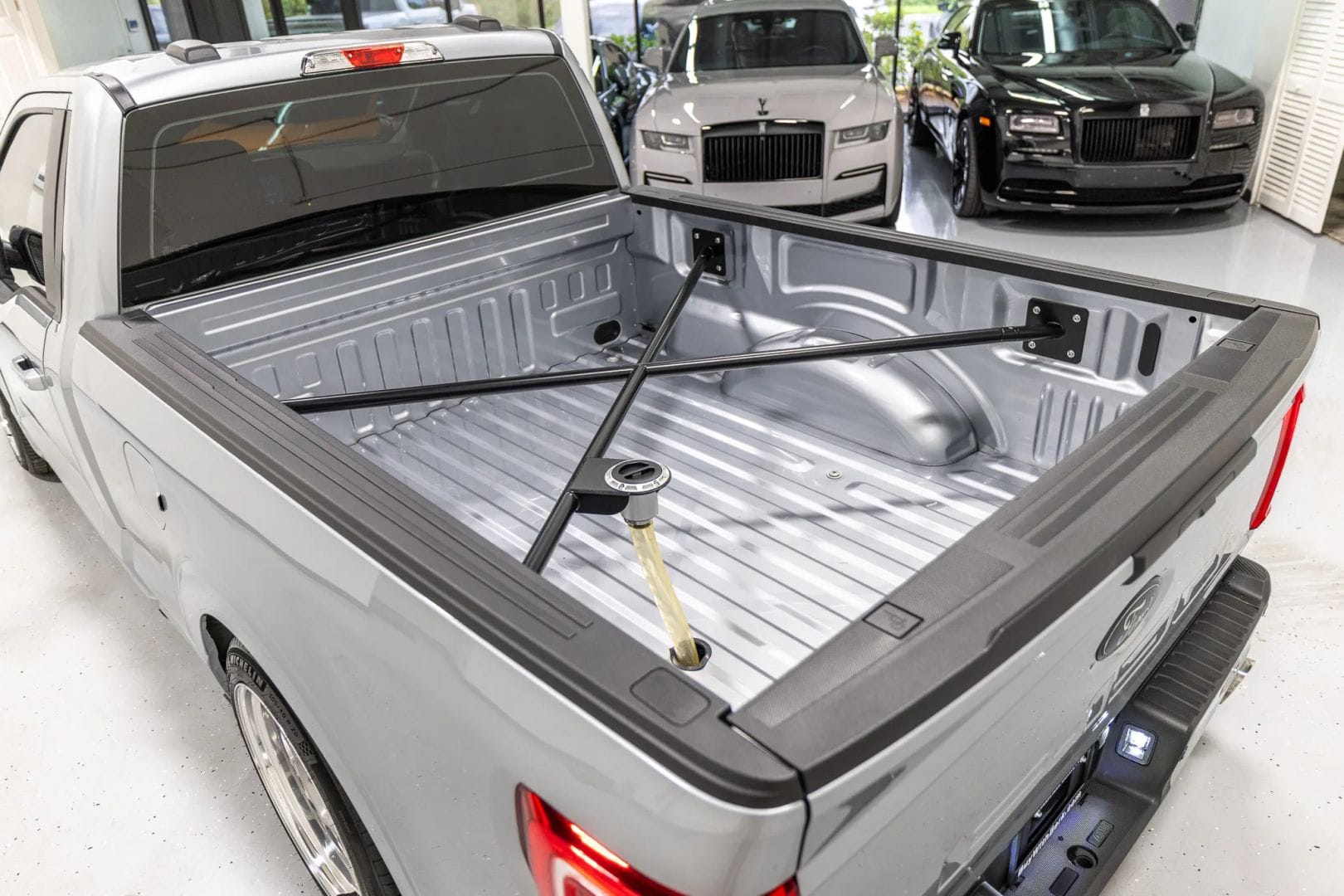

- Custom Chromoly X-Brace in Bed
- Frame C-Notched
Wheels/Tires & Brakes:

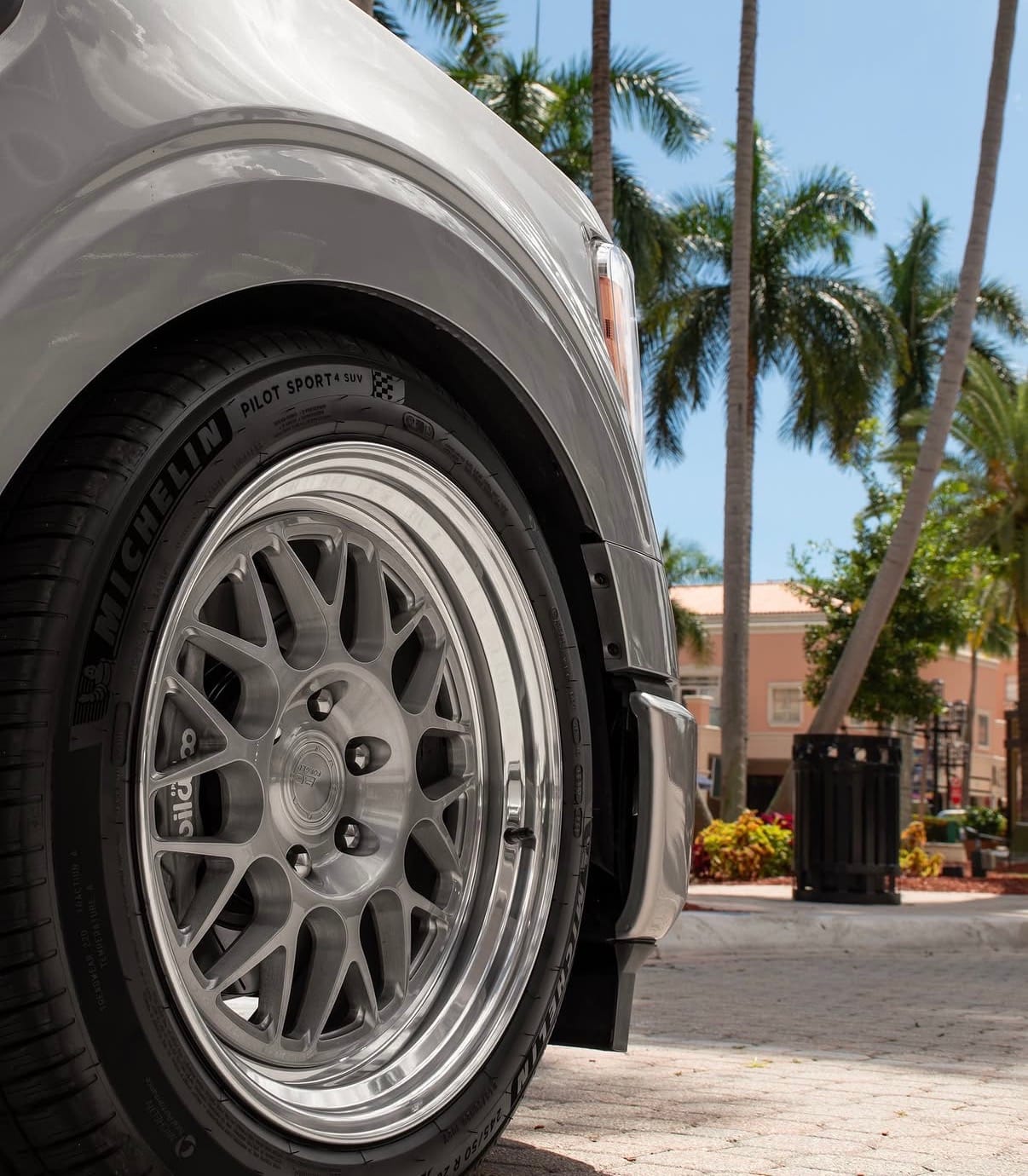

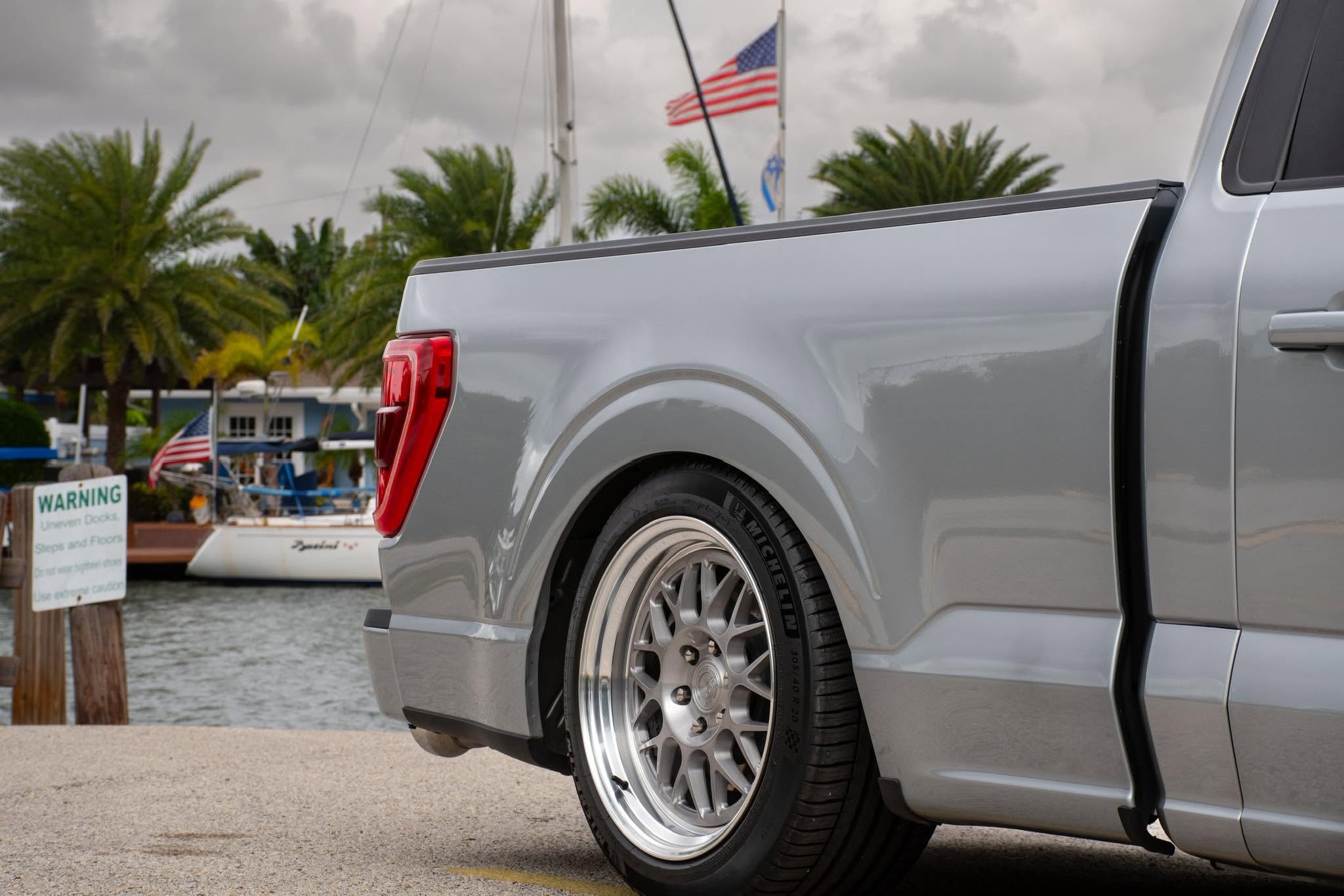

- 20x9.5 & 20x11 Custom BC Forged Wheels
- 245/305 Michelin Pilot Sport Tires
- Titanium Lugs
- Wilwood Front Brake Kit
- Custom Stainless Brake Lines All Around

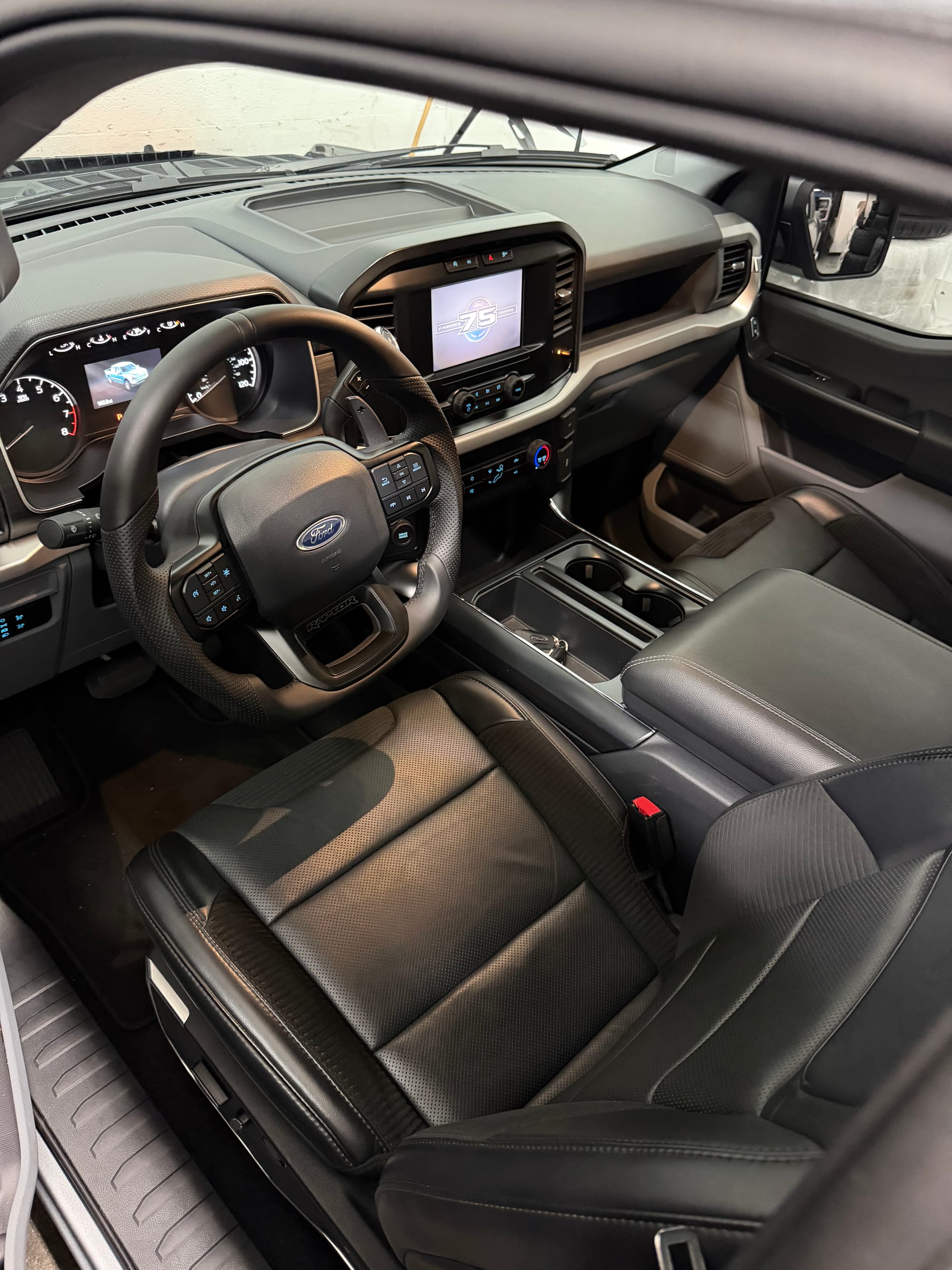

Interior:
- Full OEM Ford Leather/Suede Raptor Seats
- All Black OEM Ford Center Console
- Custom Flat Bottom Steering Wheel w/ Paddle Shifters & Raptor Insert
- Ceramic Window Tint All Around
Exterior:
- Color Matched Bumpers, Mirrors & Door Handles
- STX Front Grille
- STX Fender Emblems

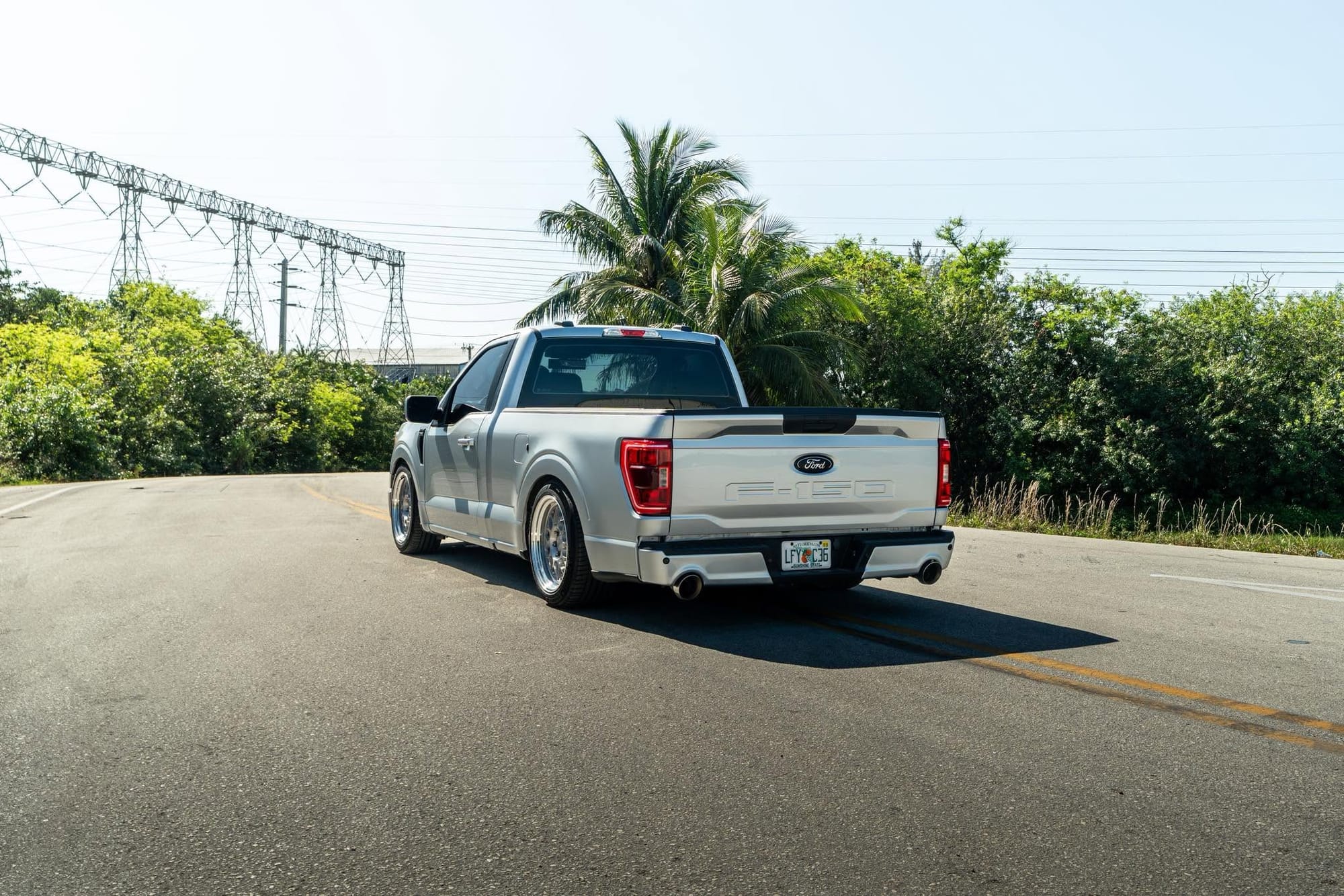

- Tremor Rear Bumper w/ Exhaust Cutouts/Cut & Trimmed
- Custom Front & Rear Emblems (Done by Hand)
- Hood Pins
